AJAZZ AK820 Max HE

75% Gasket-mounted Mechanical Keyboard With Magnetic Switch

Compact 75% layout with the Magnetic Switch
Toggle Key Feature & Hot-swappable PCB
Wired Version & Triple Modes Connectivity
High Polling Rate & Quick Triggers Function

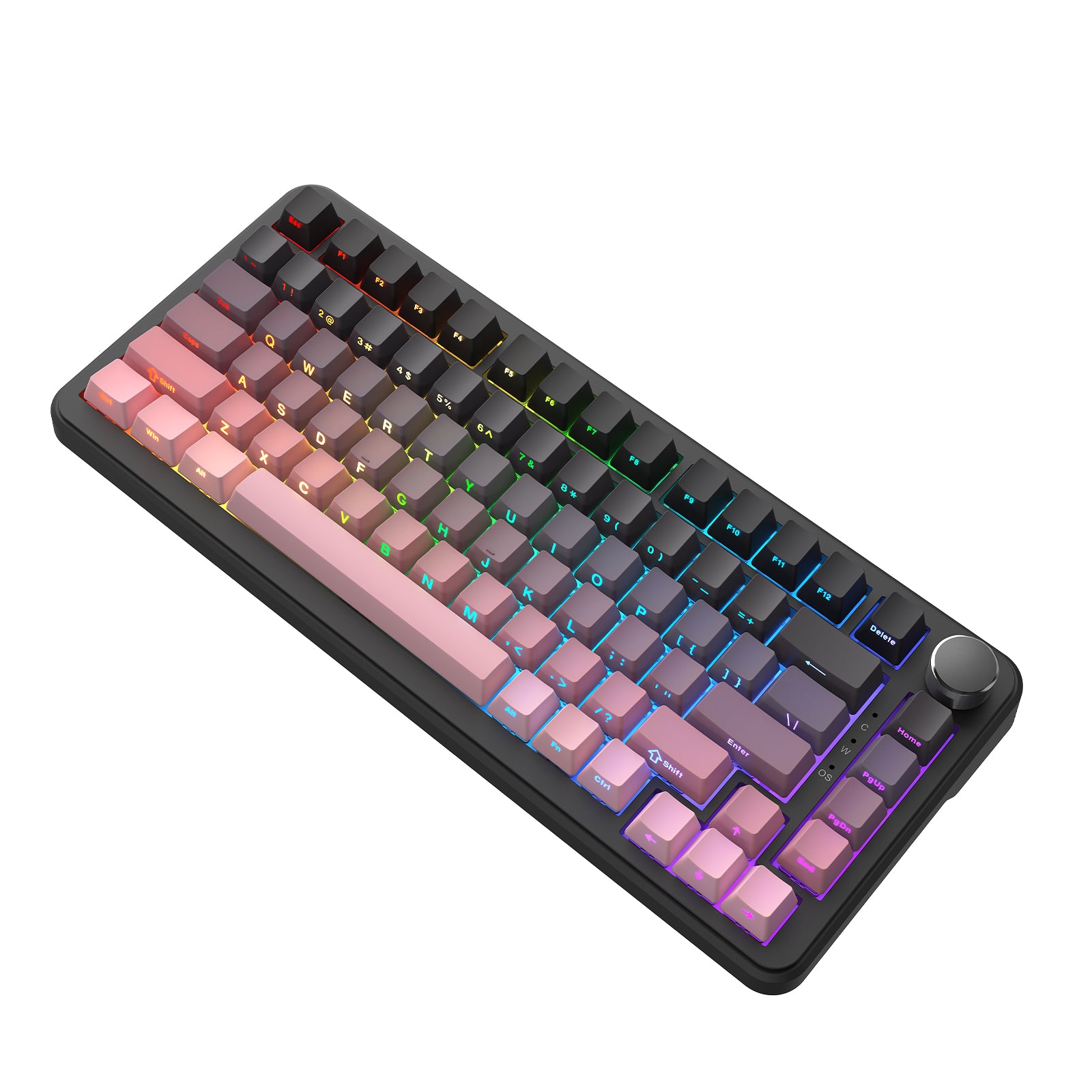

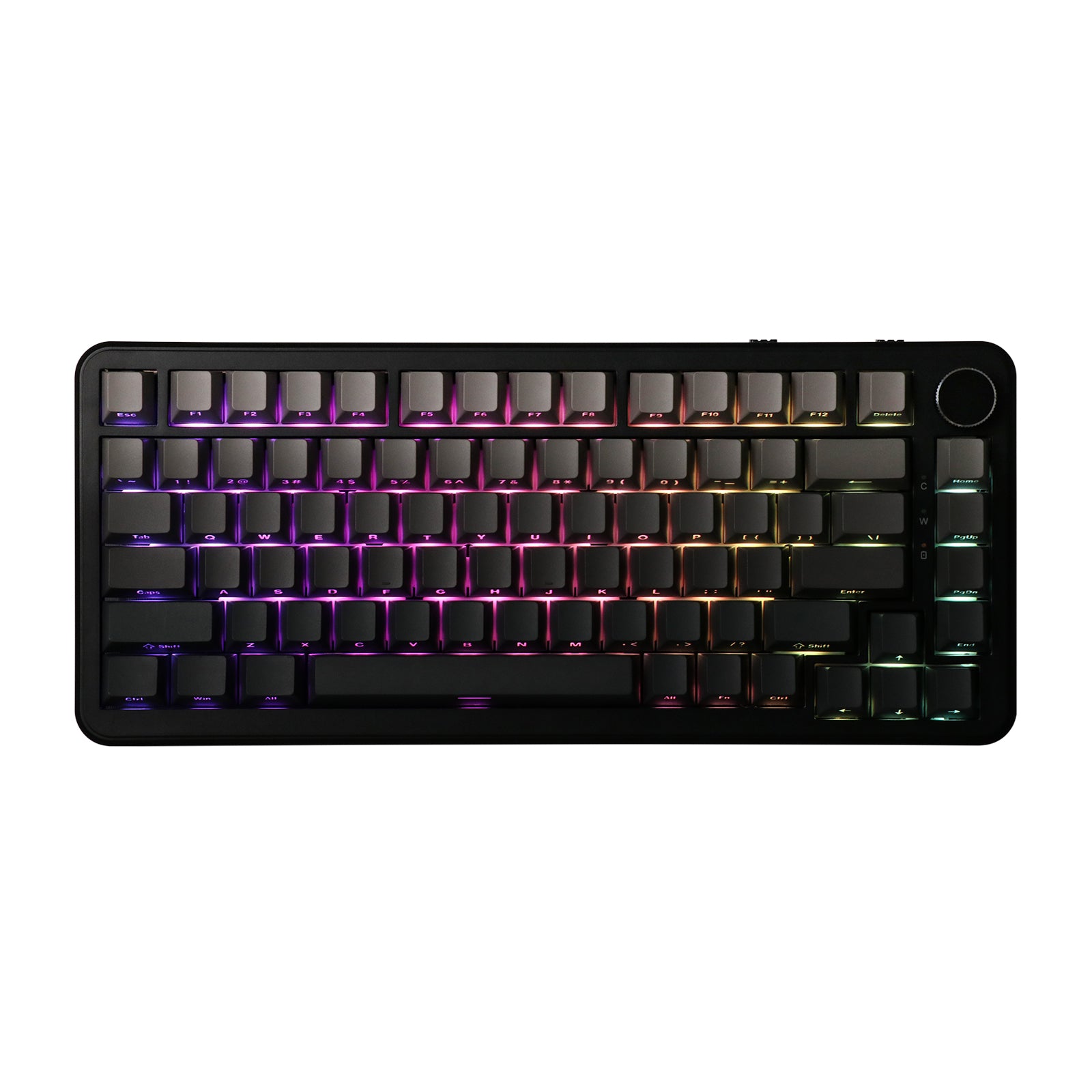

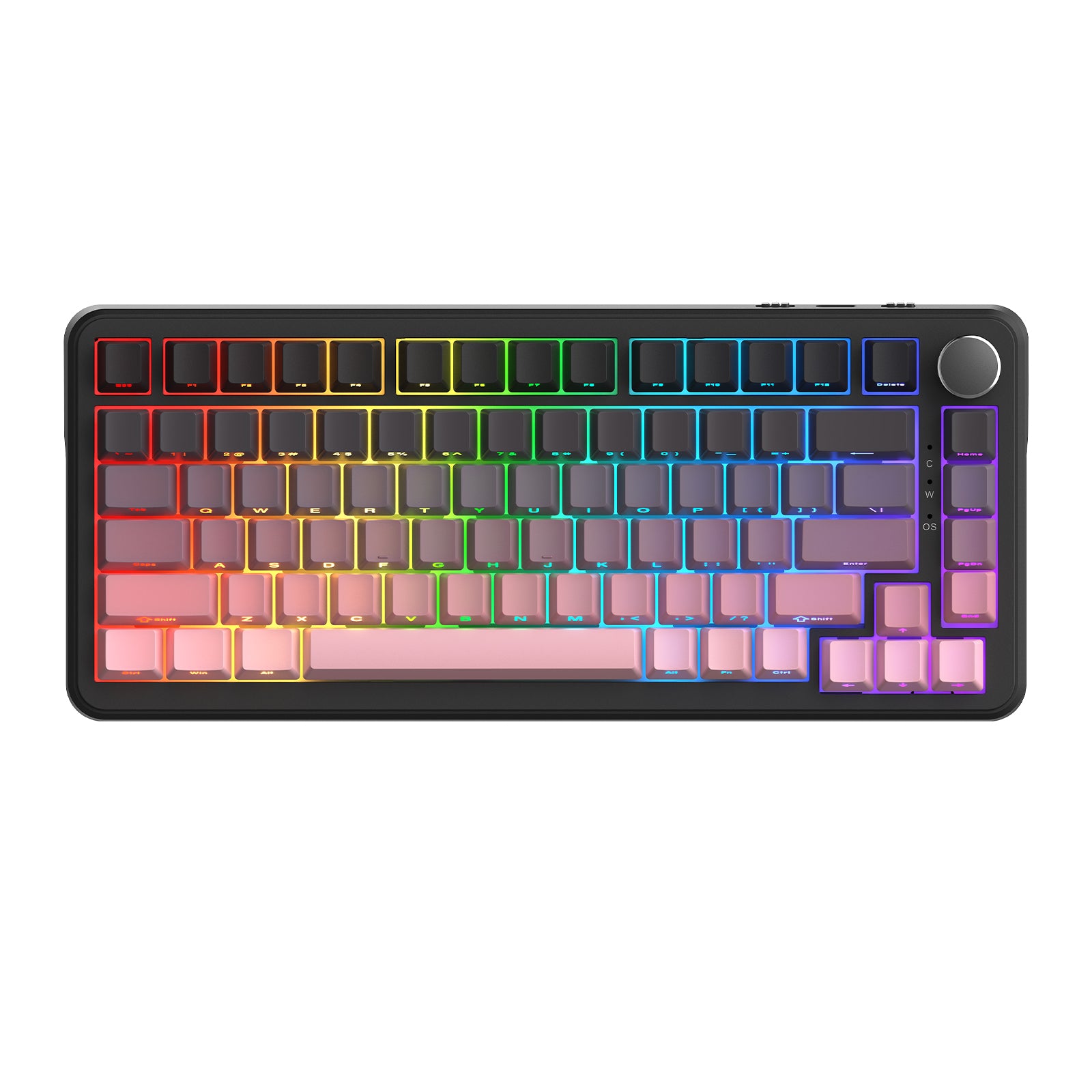

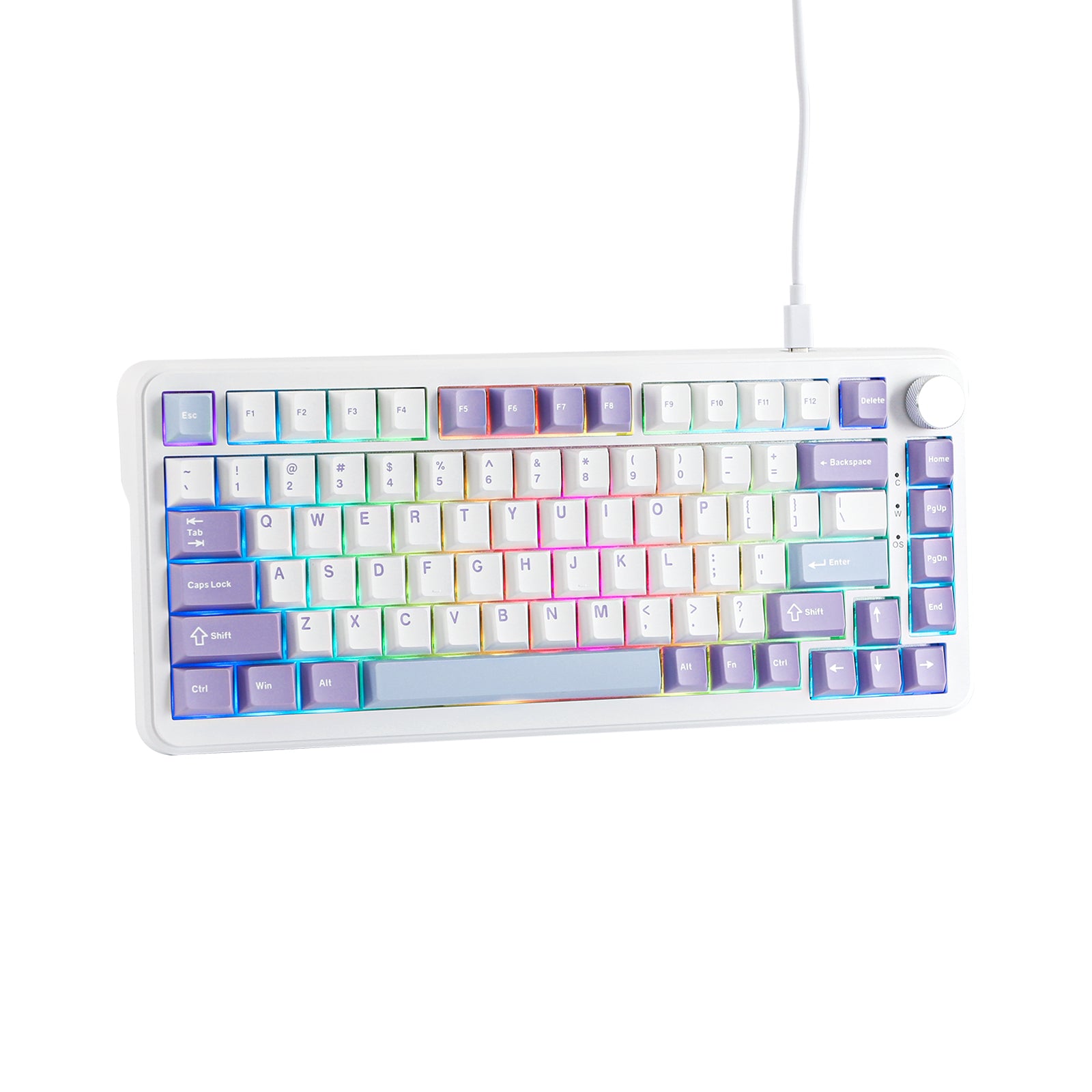

South-facing RGB Backlight Available

$69.99

Model: Wired Only

Wired Only

Wired & Wireless

Color: White Purple

Quantity

Compare

Ask a question

Size guide

Estimated Delivery:Dec 11 - Dec 15
Free Standard Shipping & Returns On all orders. Check if your country applies.

AJAZZ AK820 Max HE

Upgraded with Magnetic Switch

Following the success of the AJAZZ AK820 Pro, AJAZZ introduces the upgraded AK820 Max HE, featuring factory-lubed magnetic switches. Unlike traditional mechanical switches, these magnetic switches offer quick trigger capabilities, enabling ultra-fast response times. Users can activate keys immediately after pressing them once, without waiting for a full reset. The keyboard supports various key change modes, including DKS (Dynamic Key Switching), MT (Magnetic Tactile), and TGL (Trigger-Lock), enhancing its versatility.

AJAZZ AK820 Max HE

Adjustable Actuation Point

The AK820 Max features an Adjustable Actuation Point, allowing users to customize the activation point of each key from 0.1 mm to 4 mm with 0.1 mm precision. This customization provides a tailored gaming and typing experience, accommodating various styles.

AJAZZ AK820 Max HE

Quick Trigger (RT)

This feature dynamically adjusts the actuation and deactivation points of keys based on the press distance. The RT adjustable range is 0.1 mm to 4 mm for the wired version and 0.2 mm to 2.5 mm for the Tri-mode version. This capability is especially beneficial in gaming, where rapid key presses are crucial. The keyboard reactivates faster than typical mechanical switches, allowing for quicker command inputs and immediate keystroke repetition during intense gaming sessions.

AJAZZ AK820 Max HE

Dynamic Keystrokes (DKS)

The Dynamic Keystrokes function enables each key to perform up to four actions based on the depth of the keypress. For example, a light press might execute one action, while pressing the key further could trigger another. This feature supports complex command sequences in games or productivity applications, allowing users to program up to four distinct actions per key, enhancing gameplay dynamics and control.

Mod-Tap (MT)

The Mod-Tap function optimizes key utility by assigning dual functionalities to a single key, dependent on its use. A quick tap performs one function, while holding the key down activates another. This feature is particularly beneficial in gaming and programming environments where key real estate is valuable, boosting efficiency and reaction times.

AJAZZ AK820 Max HE

Toggle Key (TGL)

The Toggle Key feature allows any key to have dual operation modes: standard press and continuous press mode. A quick tap initiates repeated keystrokes, useful in gaming scenarios requiring repeated input. Holding the key reverts it to normal operation. This flexibility provides a strategic advantage by adapting the keyboard to different in-game situations seamlessly.

AJAZZ AK820 Max HE

Superior Build Quality

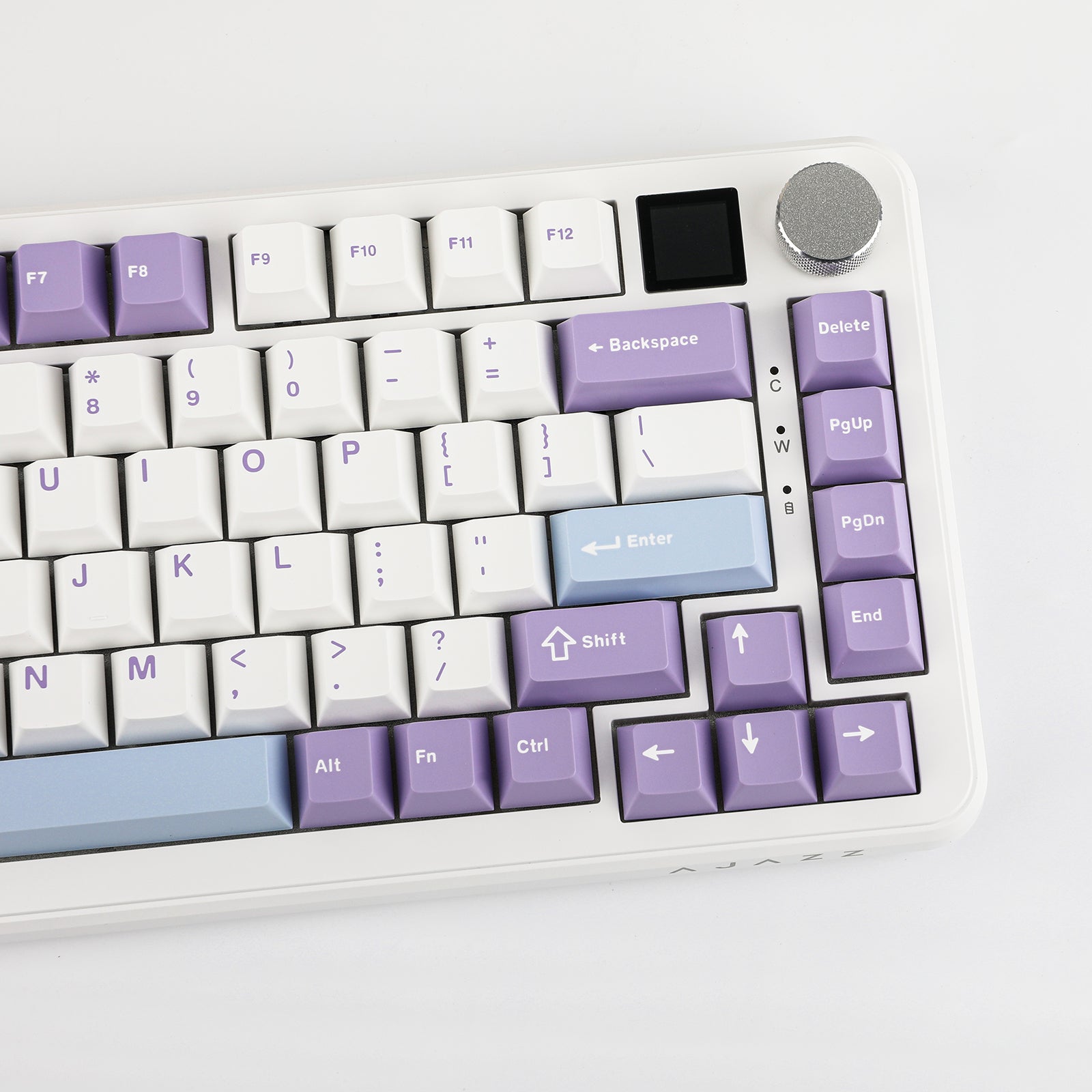

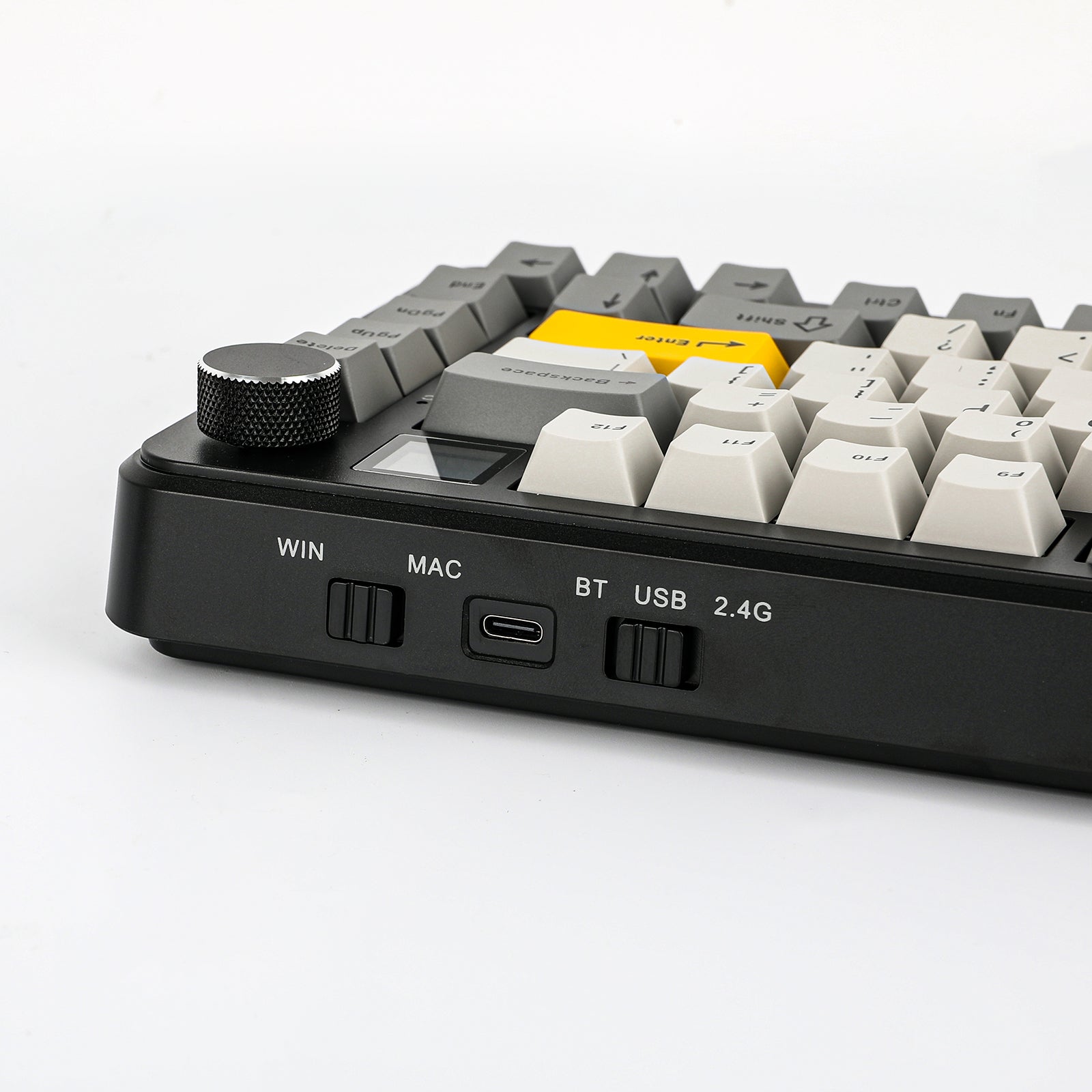

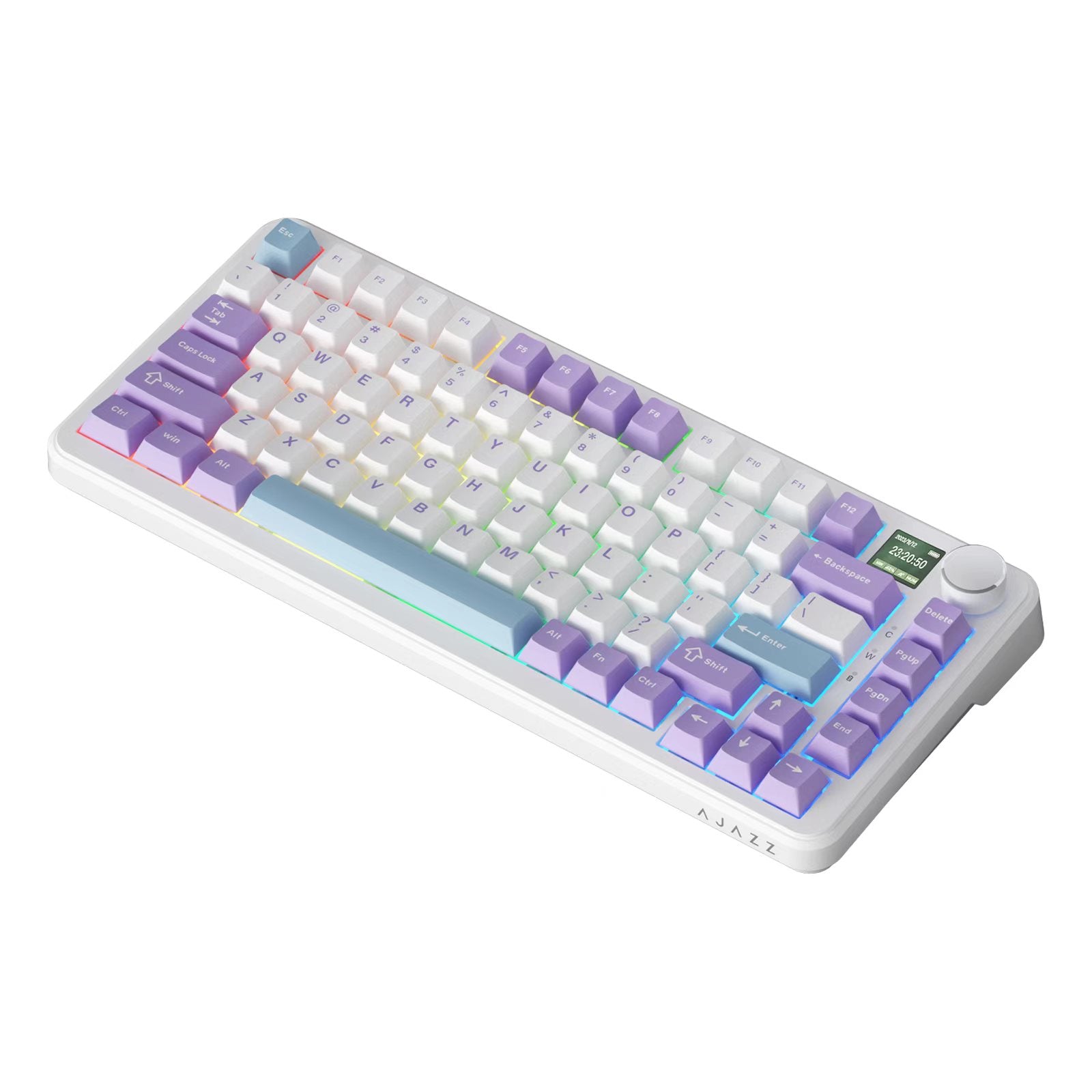

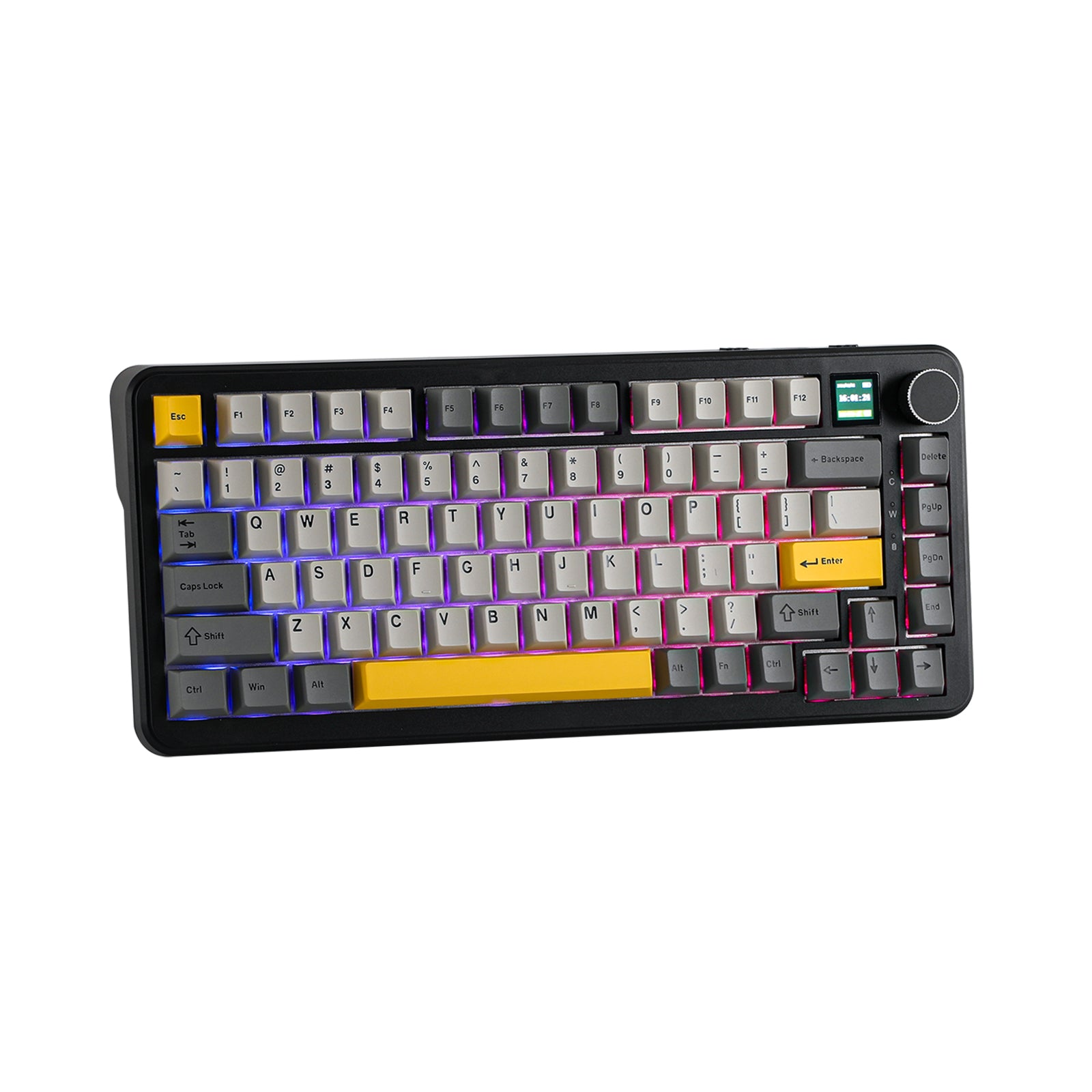

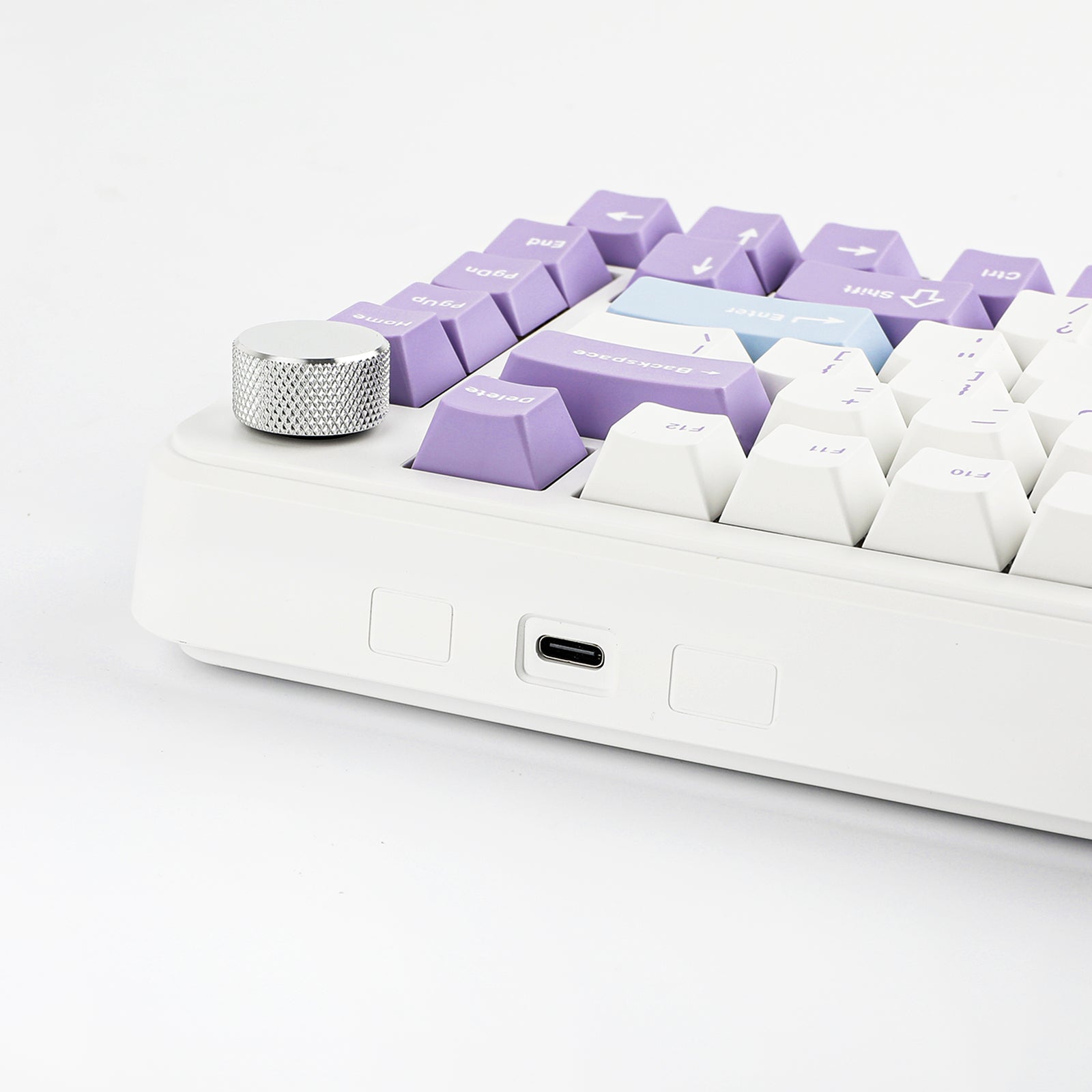

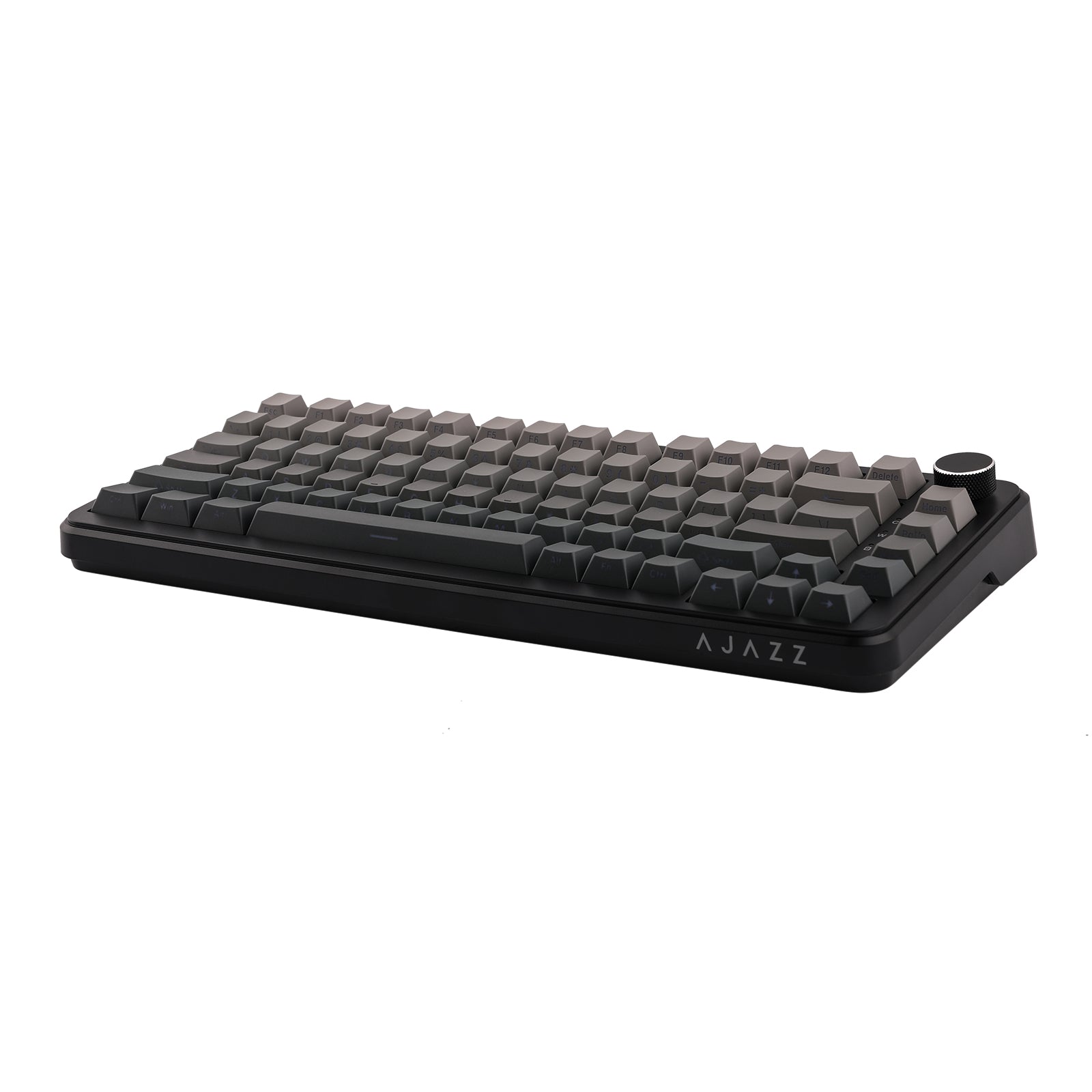

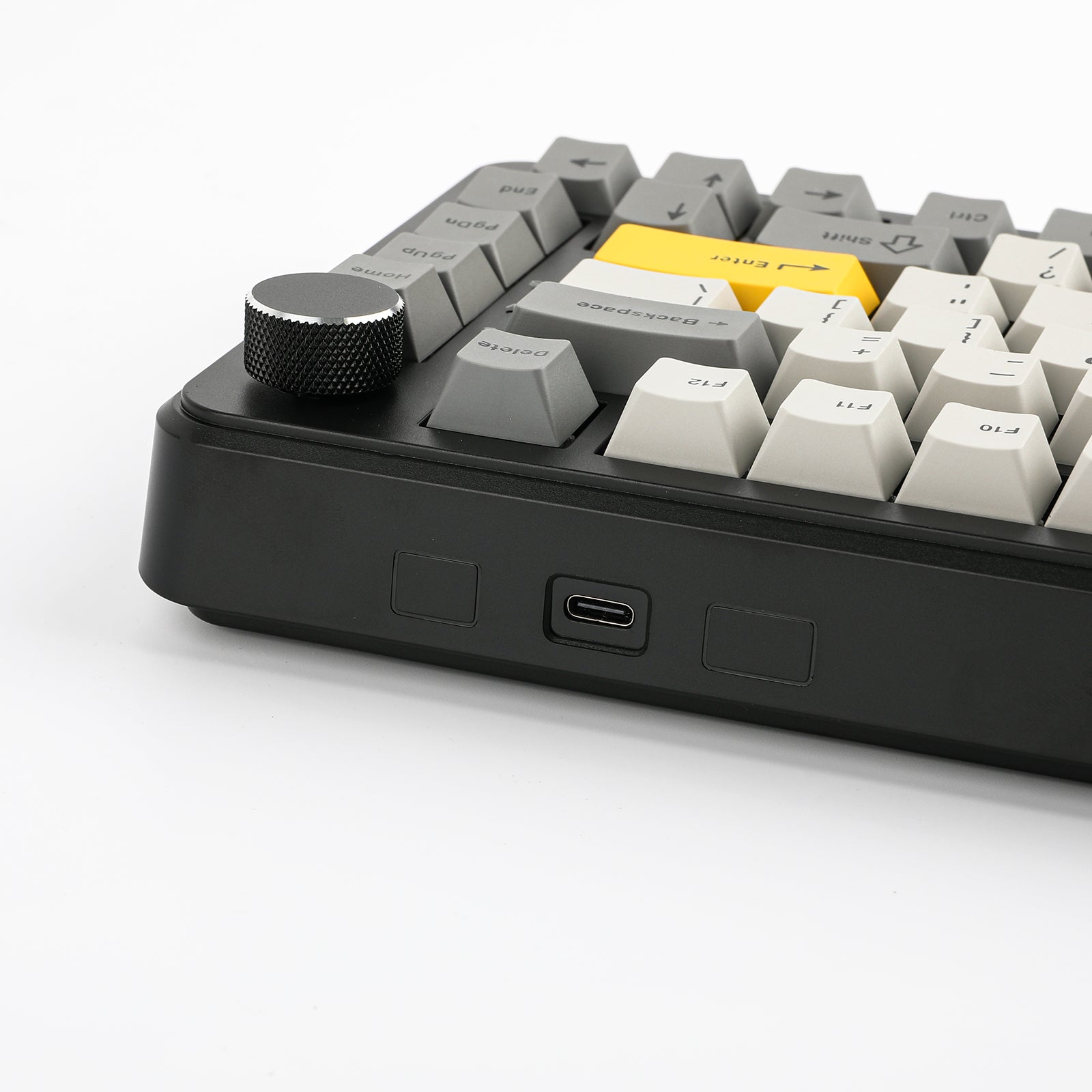

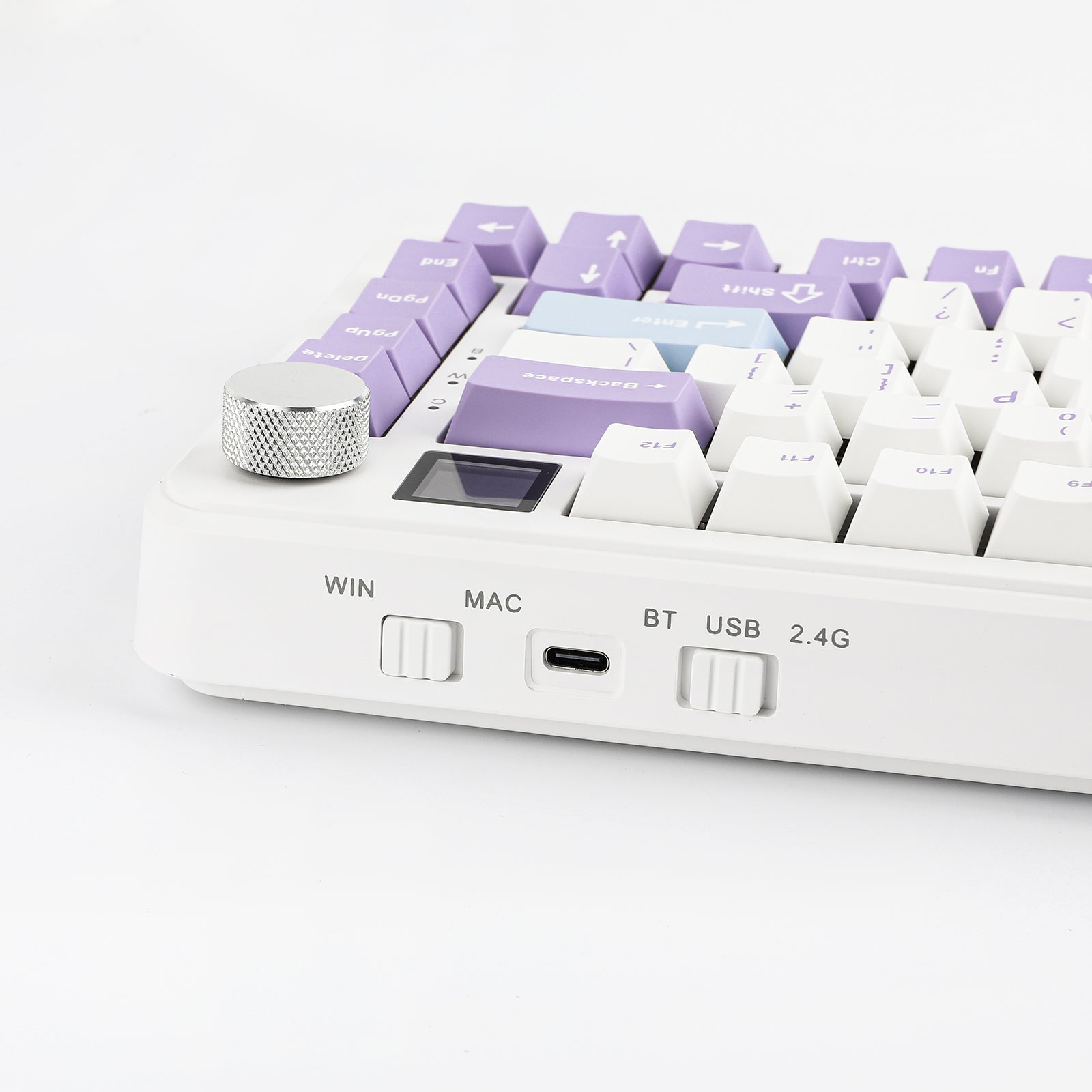

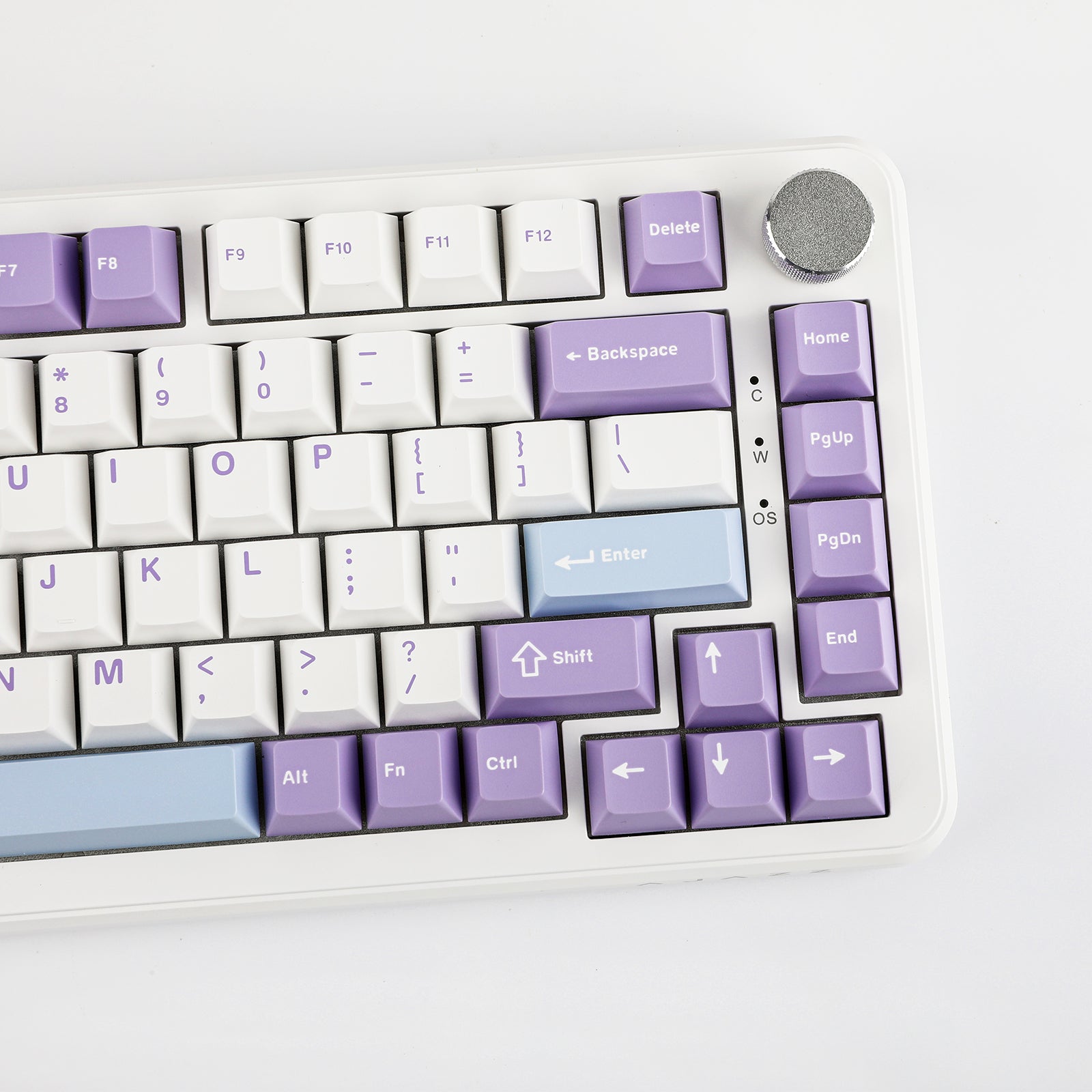

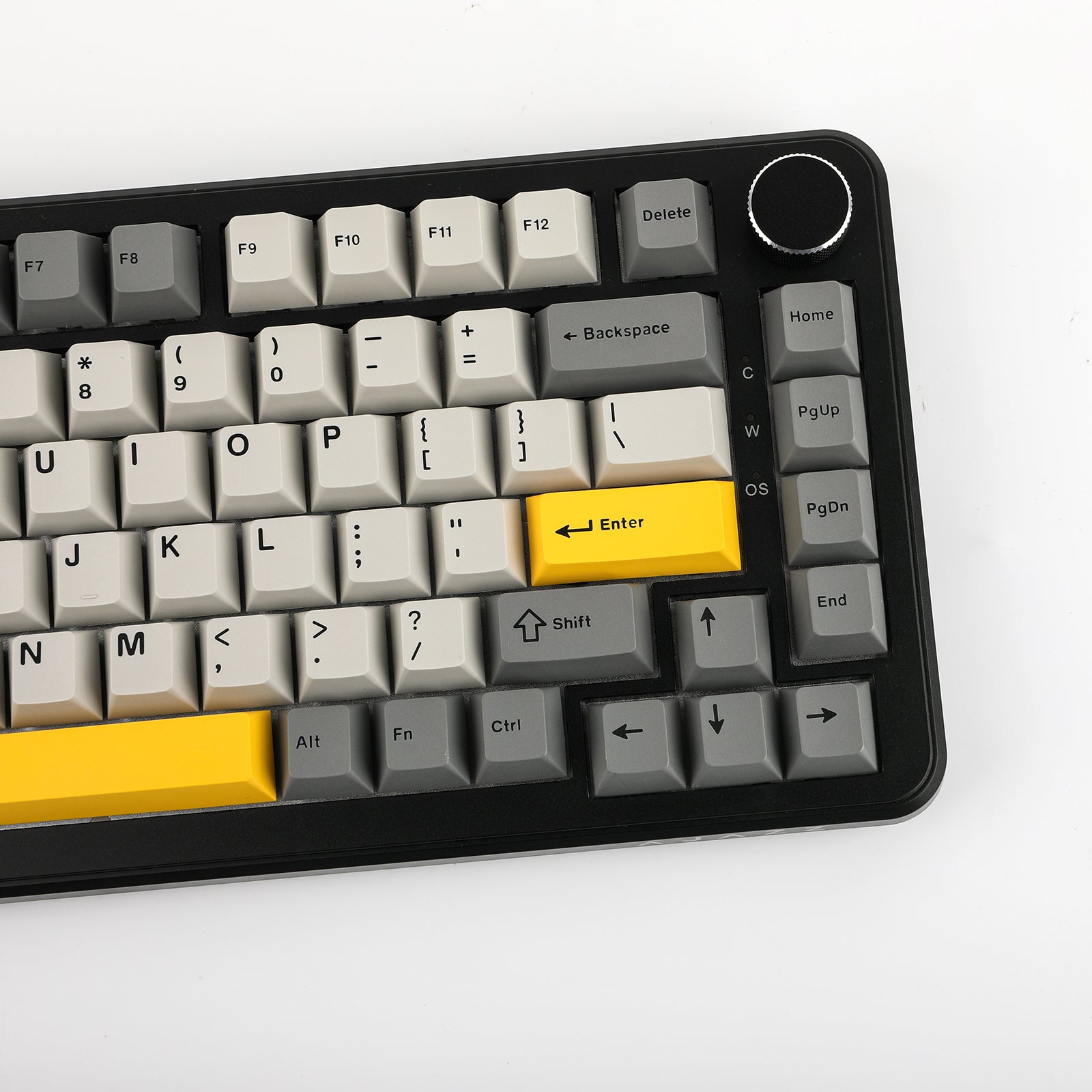

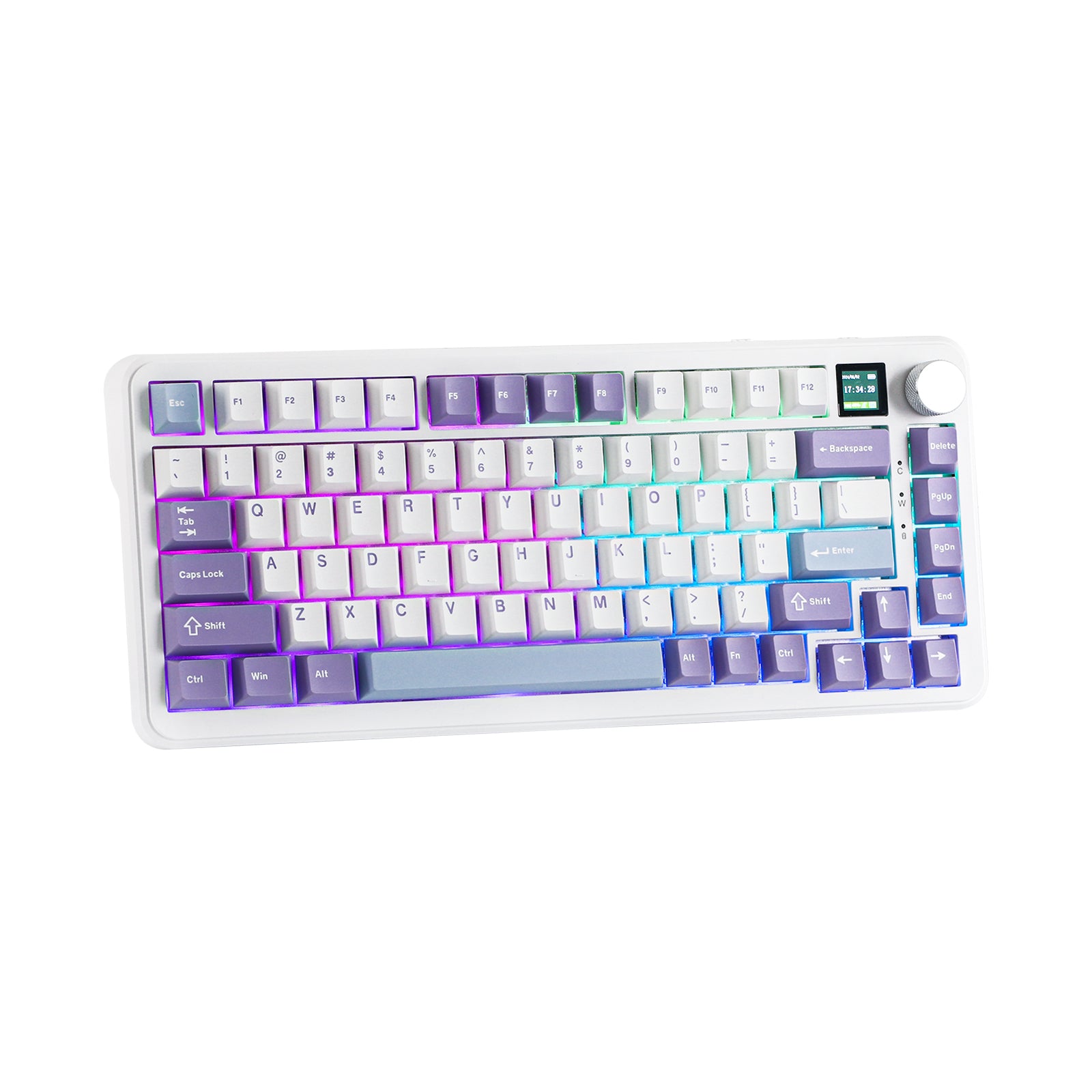

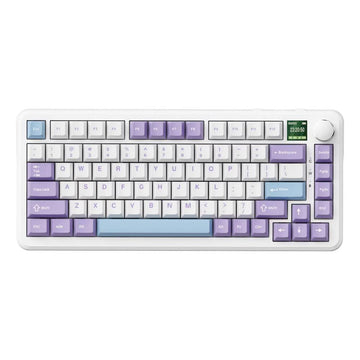

The AK820 Max HE features a 75% layout with a multifunctional knob for volume control, customizable with the AJAZZ Driver. The Tri-mode version includes an additional 0.85-inch TFT screen displaying time, battery level, connectivity, and GIFs. The internal structure features a GASKET gasket design and a stiff aluminum plate for stability and sturdy typing feedback, ensuring precise triggering during gaming. Three layers of sound-enhancing materials (Poron foam, EVA foam, and silicone case pad) improve the typing experience and fully leverage the magnetic switches' performance.

High Polling Rate and Connectivity Options

8000Hz Wired Version: Offers an ultra-low latency 8000Hz polling rate for demanding gaming enthusiasts. 1000Hz Three-Mode Version: Features a 0.85-inch color screen, 1000Hz polling rate, and three connectivity options: wired, Bluetooth, and 2.4GHz wireless, catering to various preferences.

AJAZZ AK820 Max HE

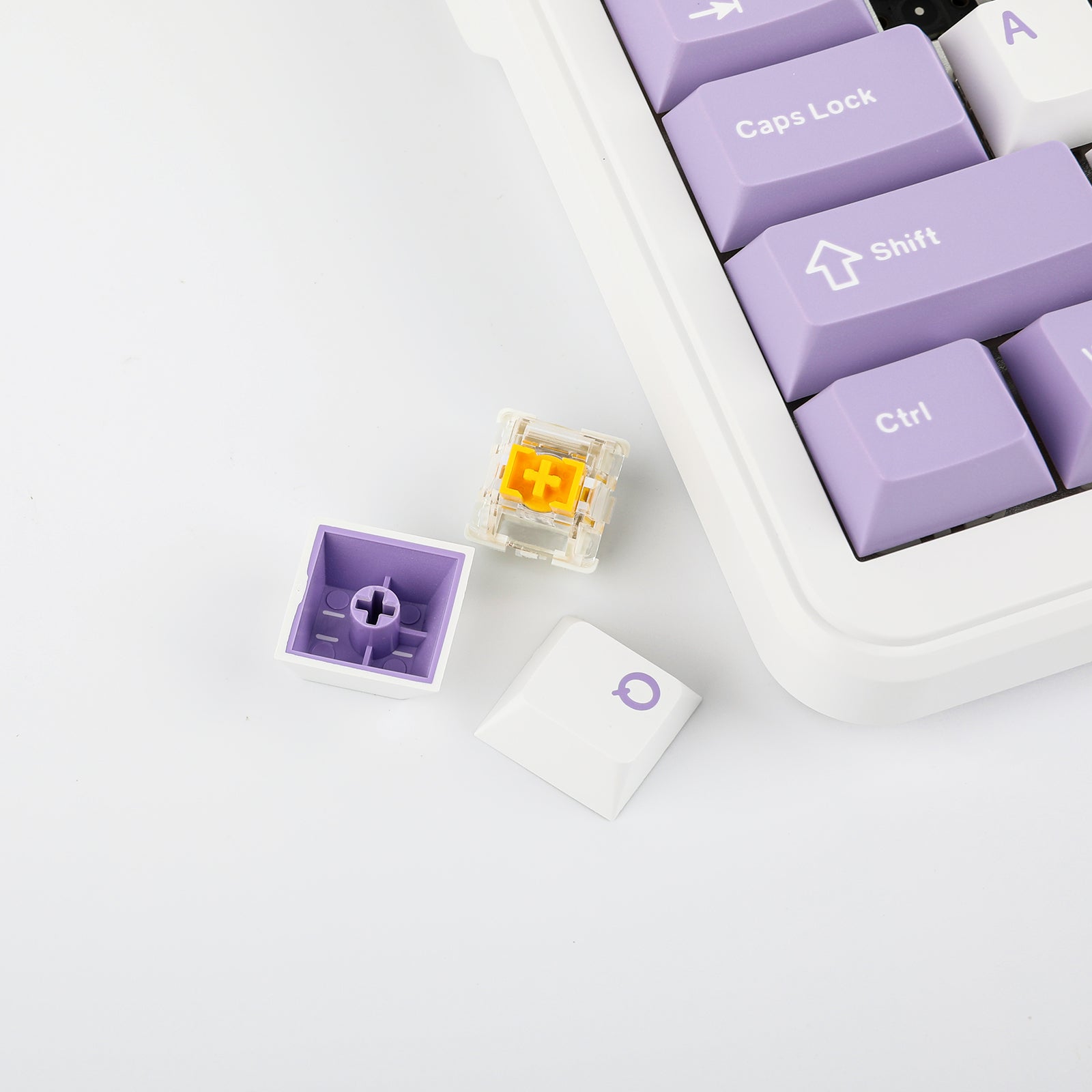

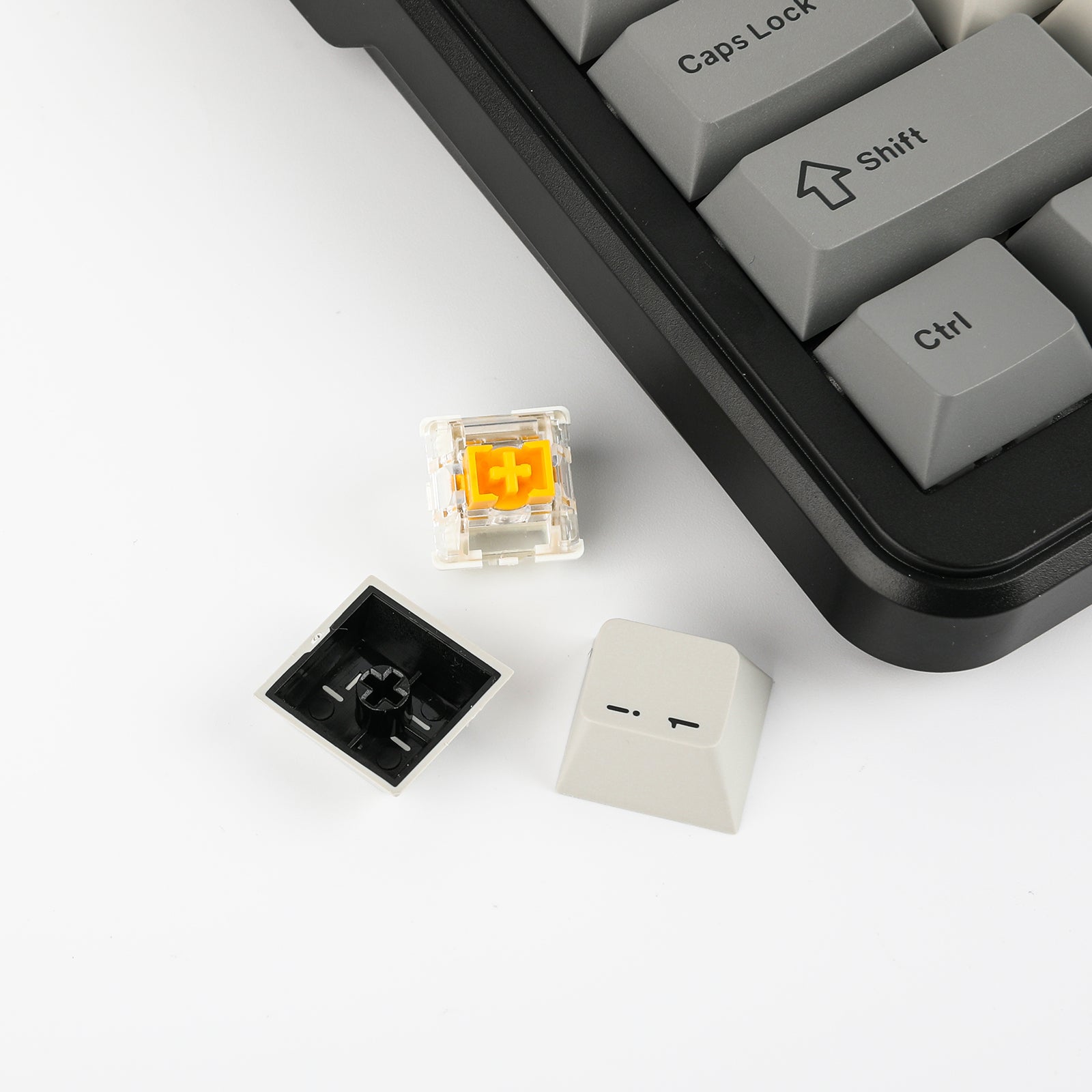

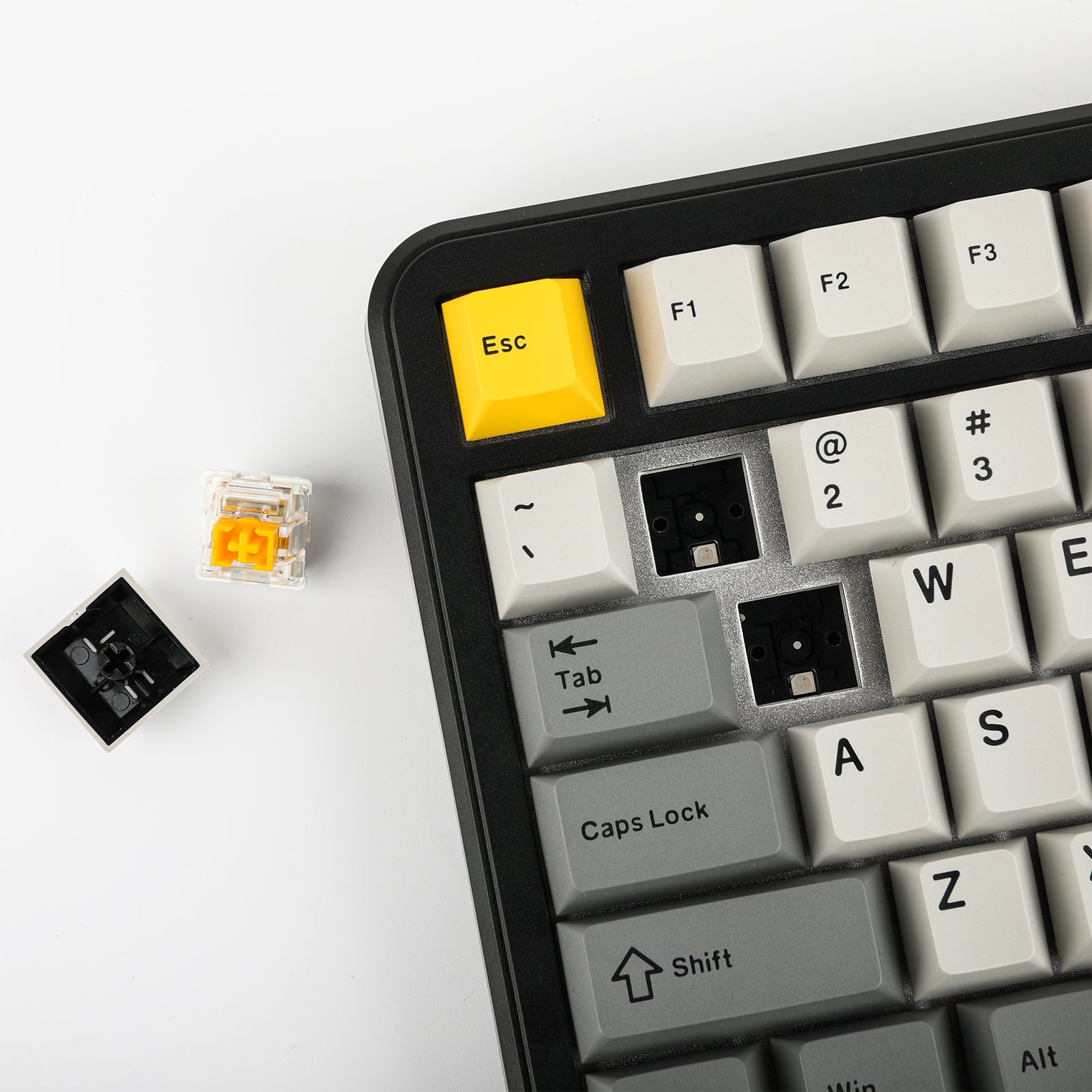

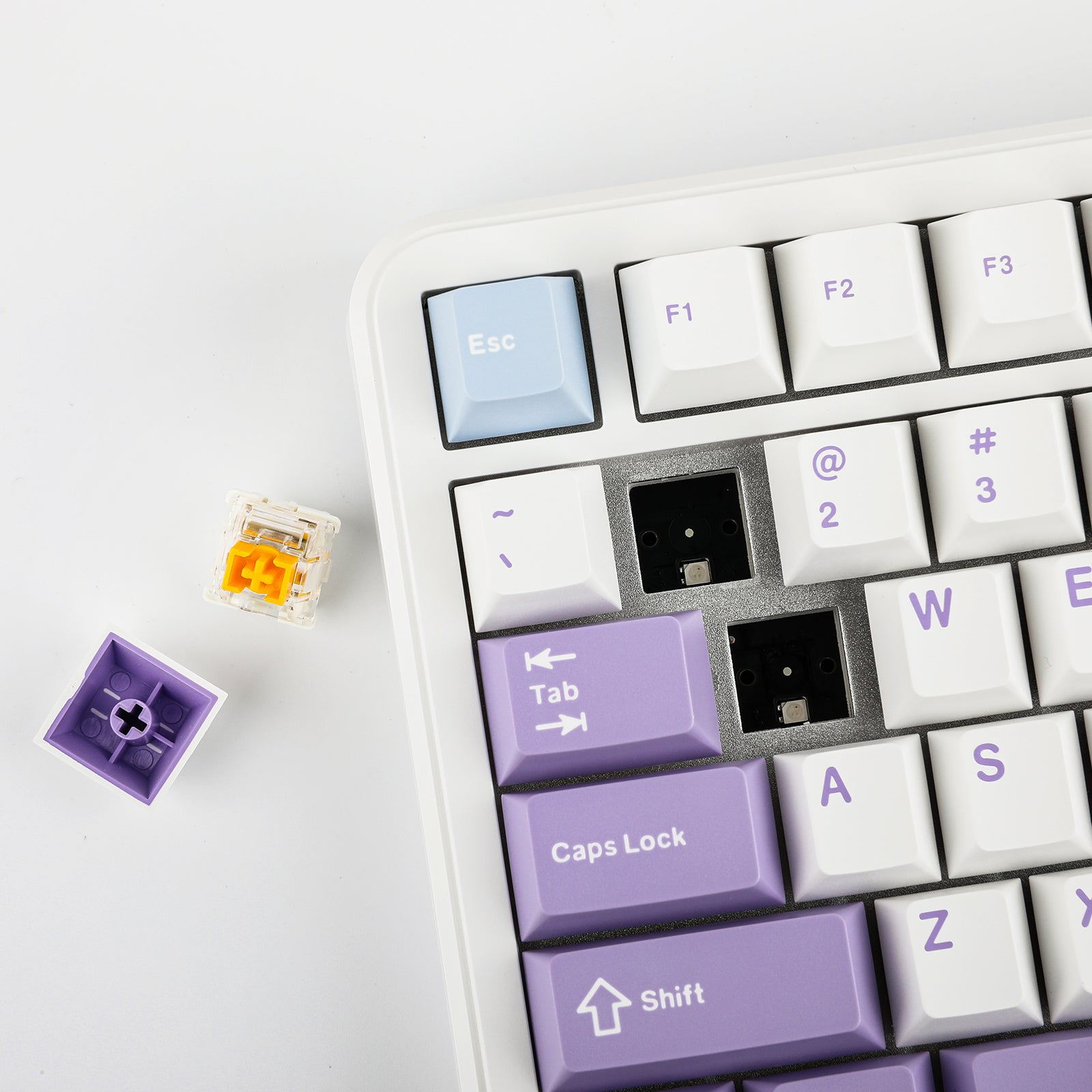

Hot-swappable Magnetic Switches

The hot-swappable PCB allows users to switch between different magnetic switches, such as Kailh and Gateron, ensuring a customizable keyboard to suit individual preferences.

Free Standard Shipping

We Offer FREE Standard Shipping on all orders to Most of the World*

1 Year Warranty

Your Keyboard and Mice are covered by a warranty against factory defects.

Authentic Products

MECHLANDS is an official distributor of the brands we carry. All products are genuine.

AJAZZ

AK820 Max HE

Connectivity

Wired only / Tri-Mode (Wired/Bluetooth/2.4GHz Wireless)

Battery

None (Wired Version) / 4000mAh (Tri-mode Version)

Polling Rate

8000Hz (Wired Version) / 1000Hz (Tri-mode Version)

Display screen

None (Wired Version) / 0.85 inch TFT colour screen (Tri-mode Version)

Case Material

Plastic

Plate Material

Aluminum

Stabilizers

Pre-lubed Plate-mount

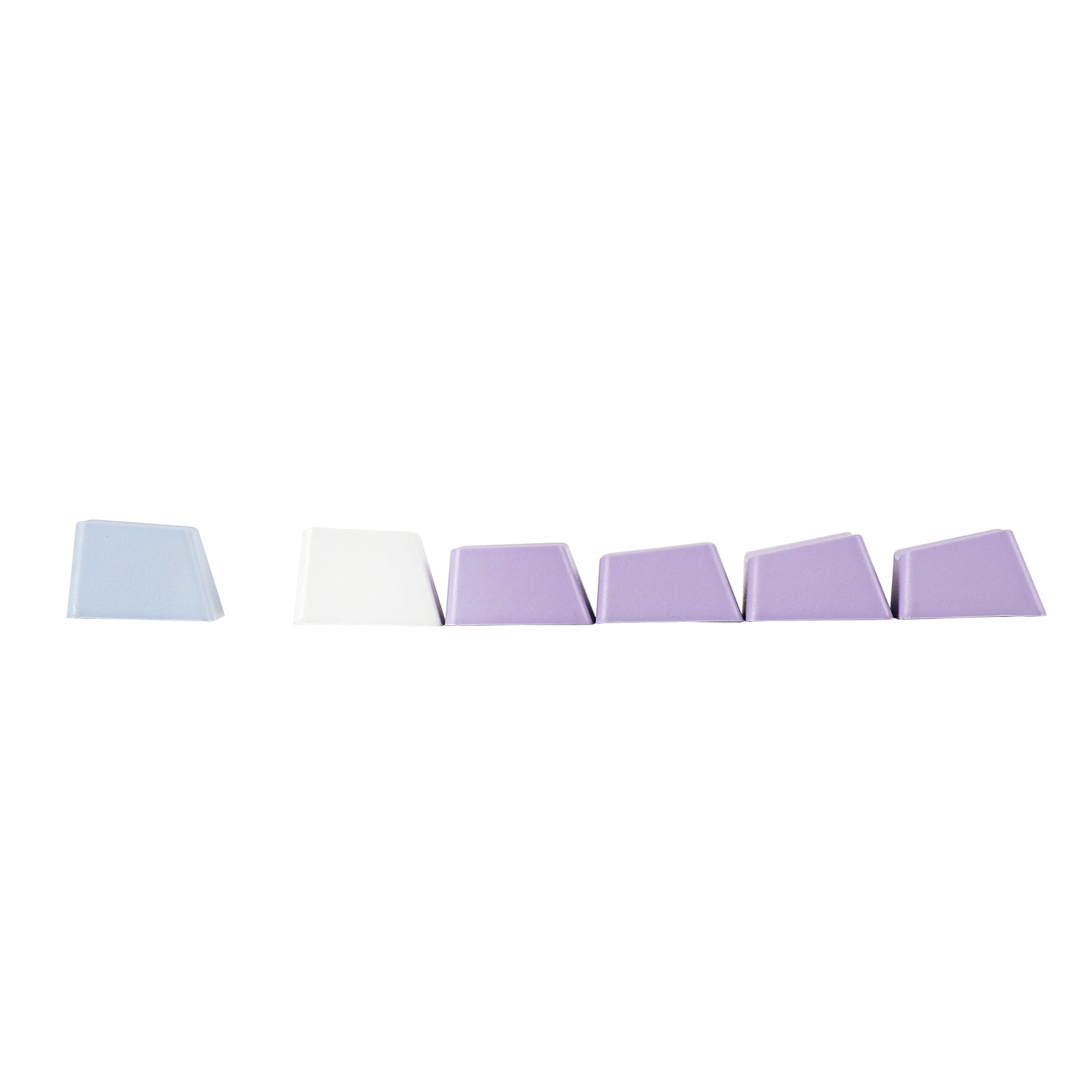

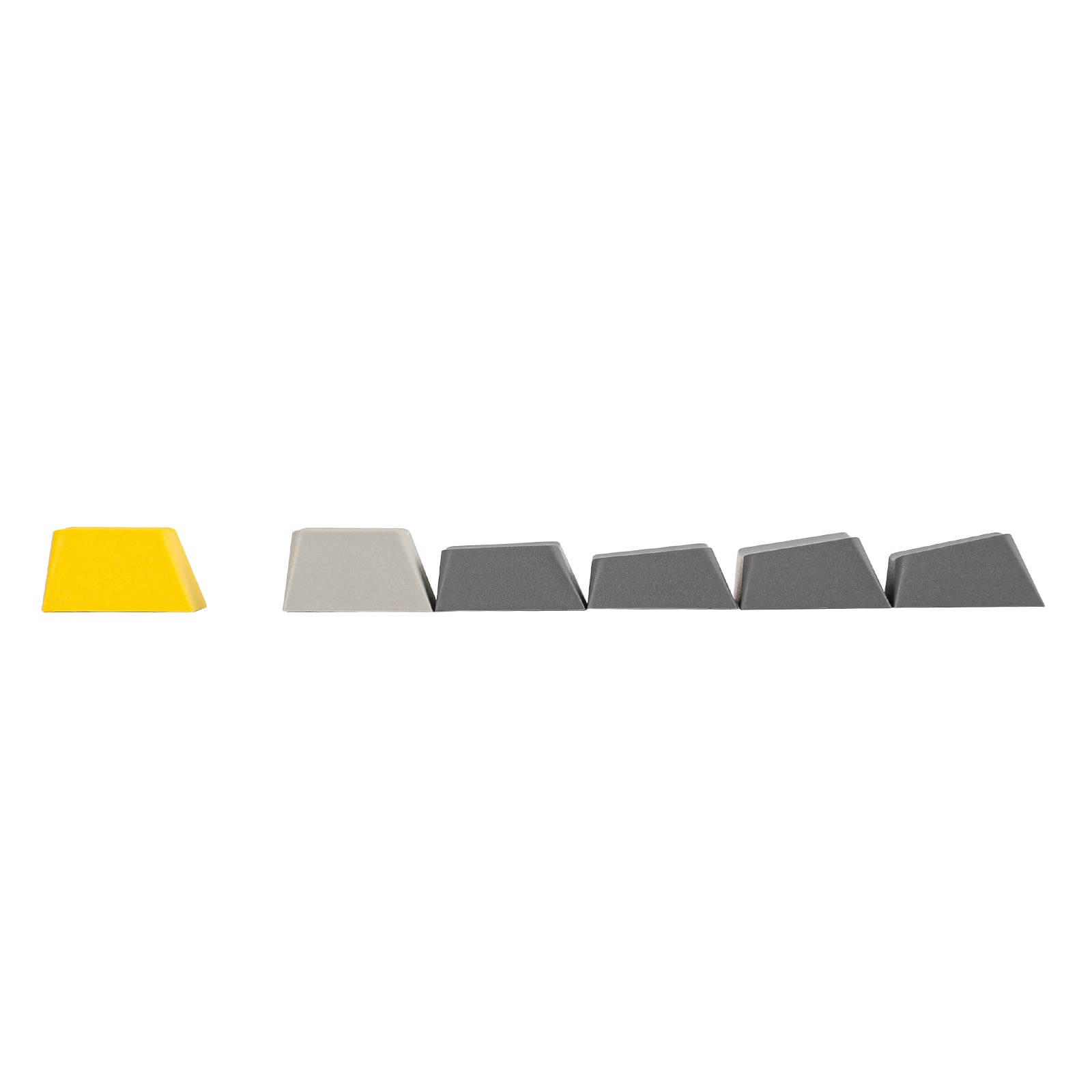

Keycaps

Cherry Profile PBT

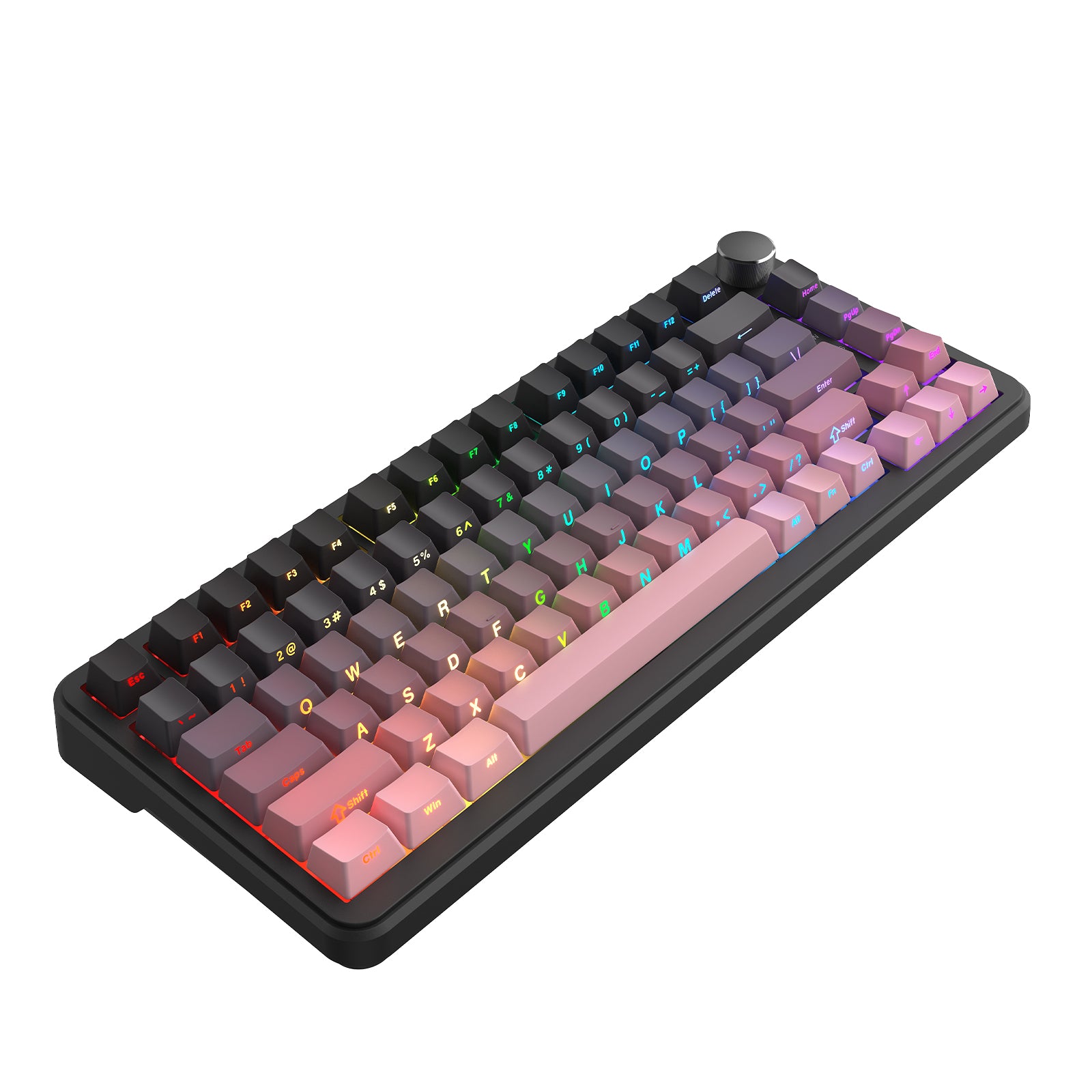

Backlight

South-facing RGB LED

Anti-Ghosting

NKRO

Hot-swappable

Yes (magnetic switches only)

Weight

860g (Wired Version) / 920g (Tri-mode Version)

Dimensions

333 x 143 x 20.5 mm

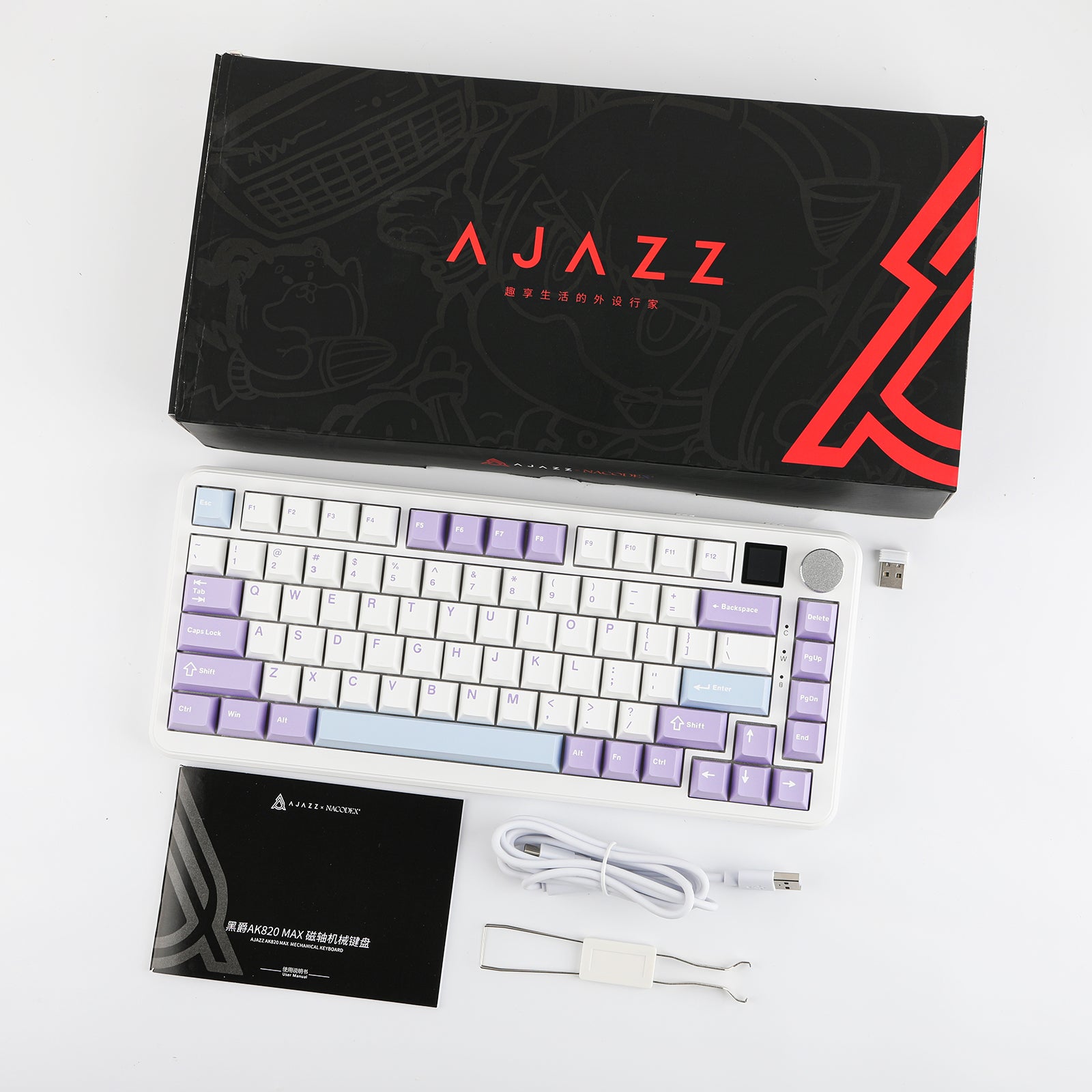

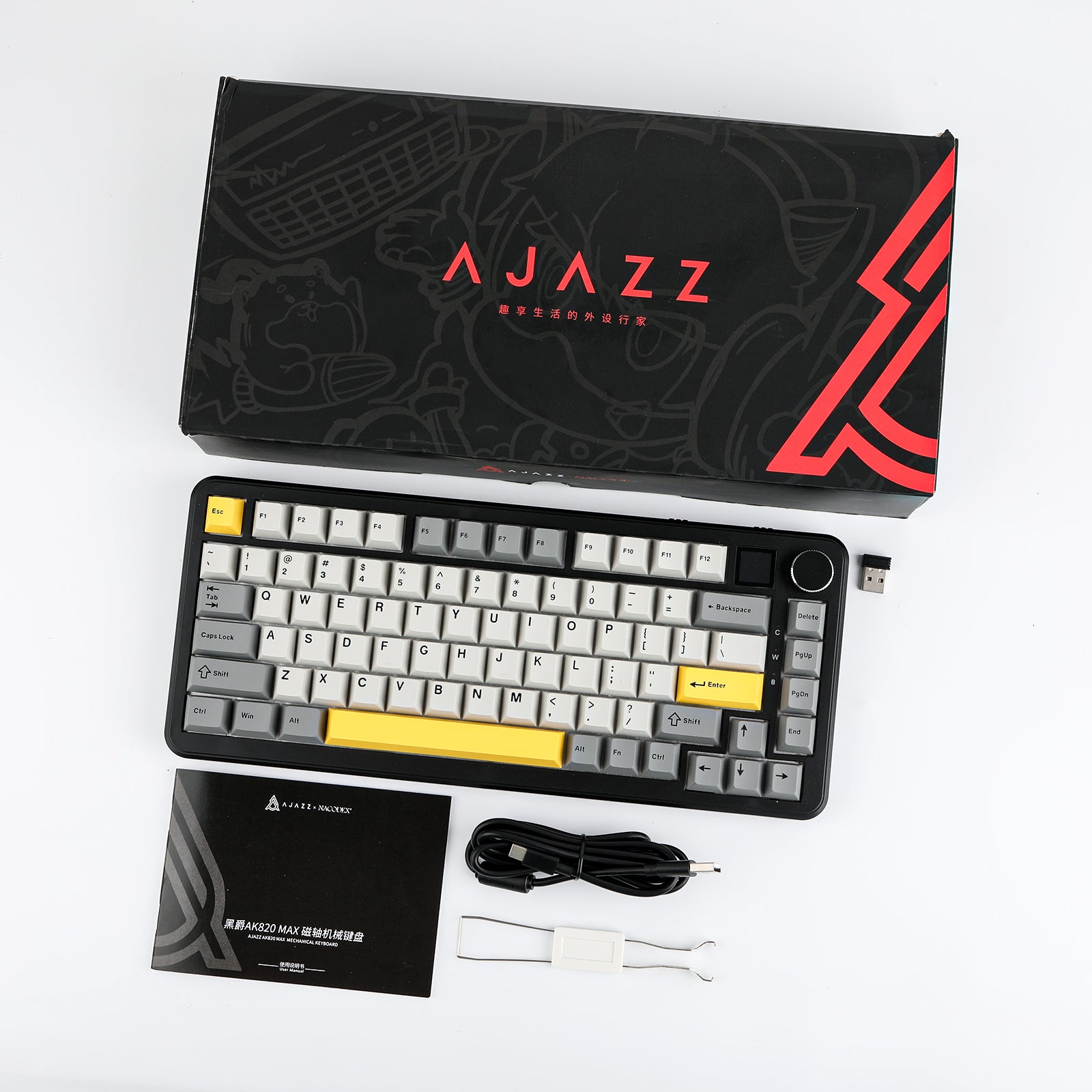

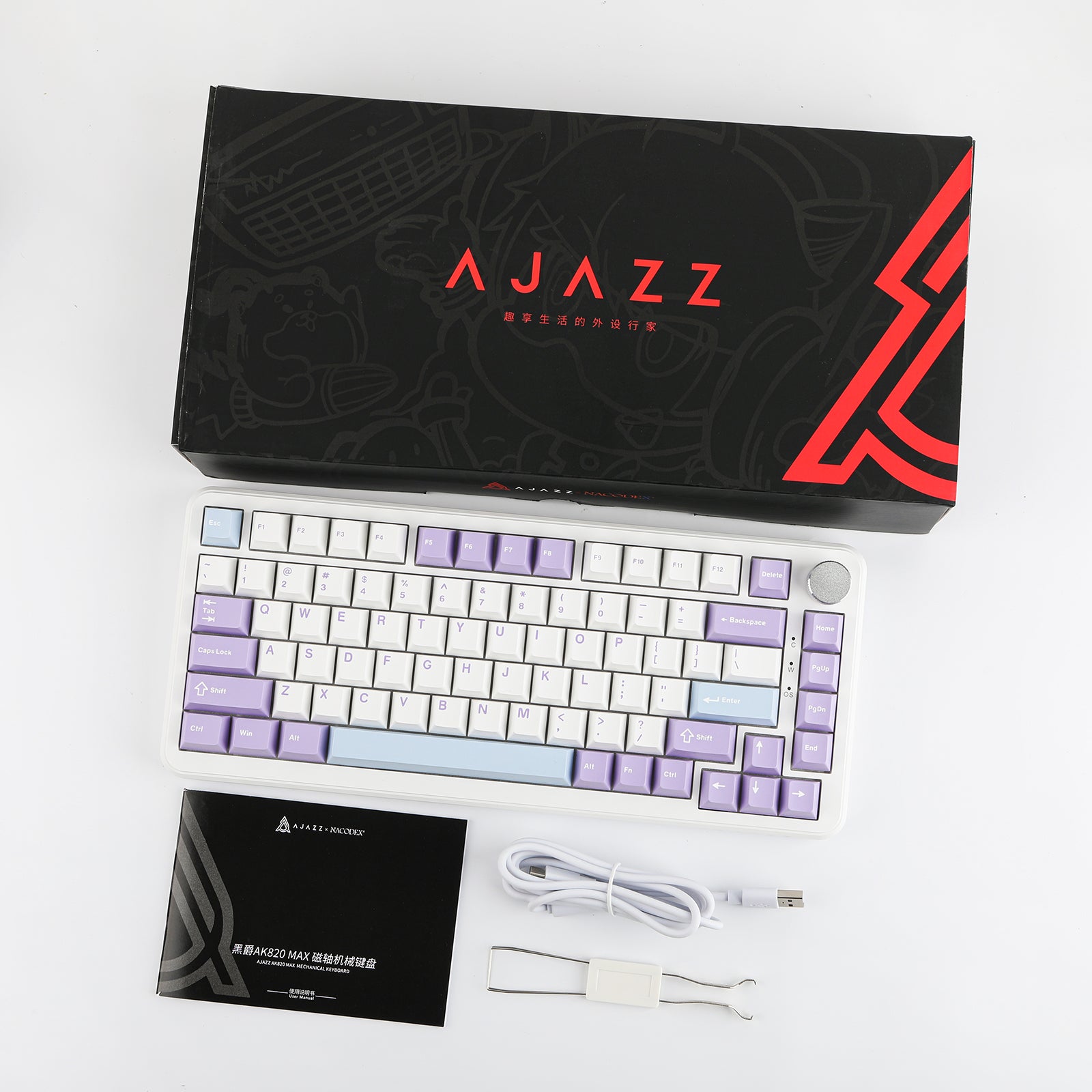

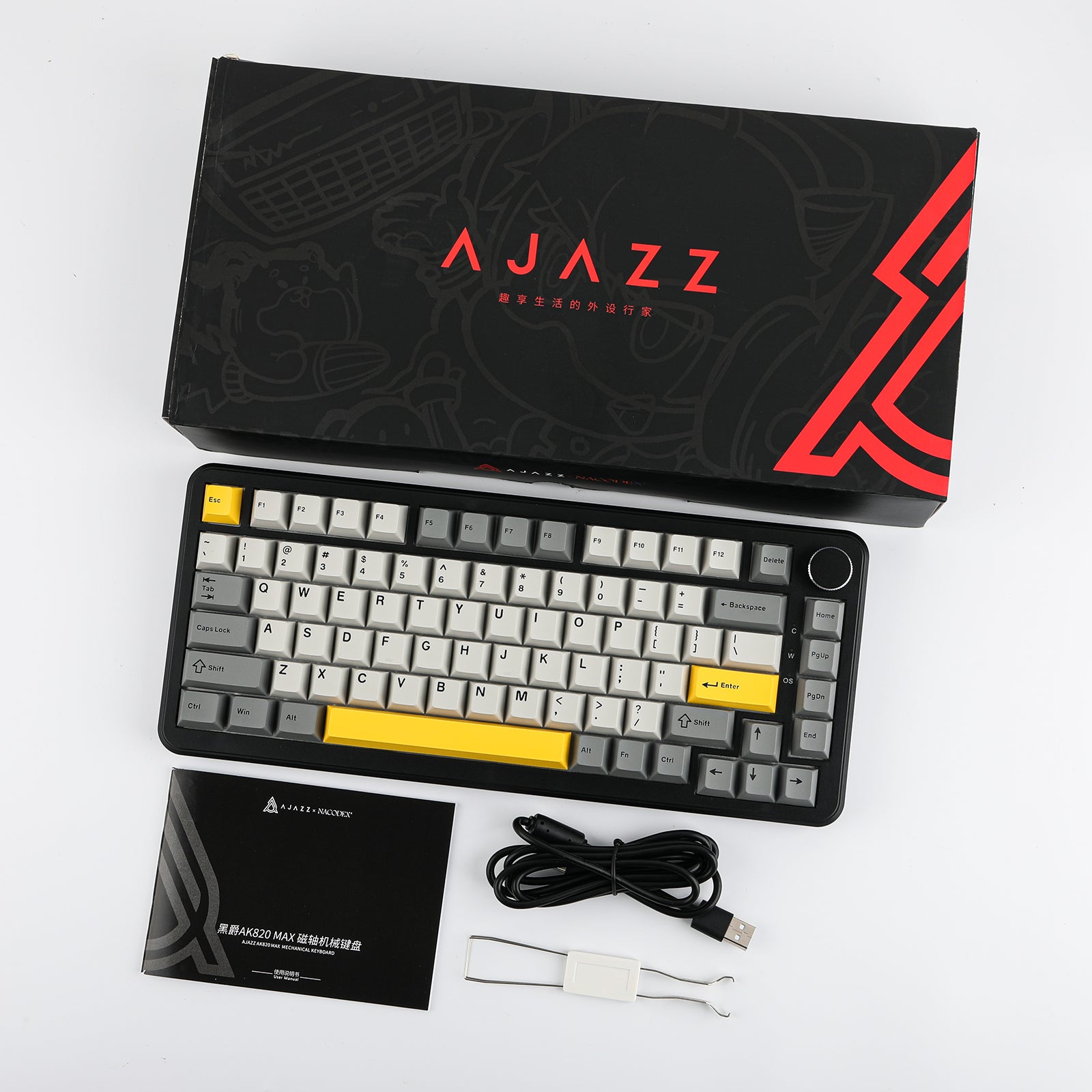

Inside the Box

1*Keyboard
1*Keycap Puller
1*Manual
1*Type-C Cable
